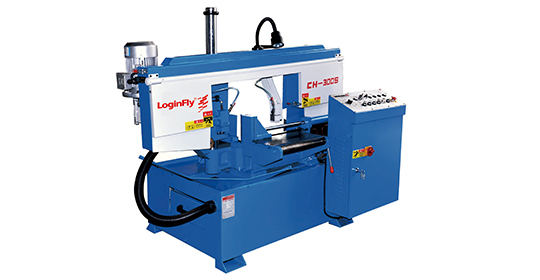

| Model No. | CH-300S | |
|---|---|---|
| Technical Data | Cutting capacity(mm) | 0° 300mm for Round shape, 300*350 for square shape 45° 240mm 240*130mm |
| Blade speed(m/min) | 30/50/80 | |
| Blade size(mm) | 27*0.9*3650 | |
| Main Motor(kw) | 2.2 | |
| Hydraulic Motor(kw) | 0.75 | |
| Coolant Pump(kw) | 0.06 | |
| Work piece Clamping | Hydraulic Vise | |
| Blade Tension | Manual | |
| Main Drive | Worm wheel drive | |
| Material feed | Manual | |
| Machine size | 2000*1250*1650mm | |
| Machine weight | 720kg | |
| Standard Equipment | Blade cleaning brush | YES |
| Working light | YES | |
| One piece of bi-metal saw blade | YES | |
| One set of tools with tool box | YES | |
| Operation manual | YES | |
| Roller rack | YES | |
| Saw frame height selector gauge | YES | |
