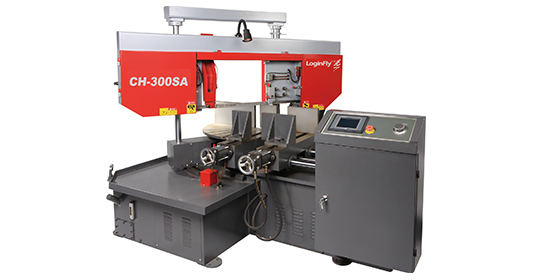

| Model No. | CH-300SA | |
|---|---|---|
| Technical Data | Cutting capacity(mm) | 0° 300mm for Round shape, 360*300 for square shape 45° 260mm 260*300mm |
| Blade speed(m/min) | 30/50/80 | |
| Blade size(mm) | 34*1.1*4420 | |
| Main Motor(kw) | 3.0 | |
| Hydraulic Motor(kw) | 0.75 | |
| Coolant Pump(kw) | 0.06 | |
| Work piece Clamping | Hydraulic Vise | |
| Blade Tension | Manual | |
| Main Drive | Worm wheel drive | |
| Material feed | Manual | |
| Machine size | 2160*2200*1950mm | |
| Machine weight | 735kg | |
| Standard Equipment | Blade cleaning brush | YES |
| Working light | YES | |
| One piece of bi-metal saw blade | YES | |
| One set of tools with tool box | YES | |
| Operation manual | YES | |
| Roller rack | YES | |
| Saw frame height selector gauge | YES | |
