Automatic angle positioning in 1° increments from 0° to 45°.
Hydraulic bundle vise for both vises included with standard equipment.
Precise and stable saw band guides ensure high angular accuracy.
Automatic band breakage control.

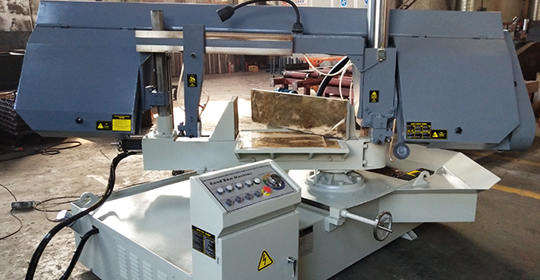

Model No. CH-400S
Technical Data Cutting capacity(mm) 0°    400mm for Round shape, 400*600 for square shape
45°   400mm 400*400mm
Blade speed(m/min) 28/45/73
Blade size(mm) 41×1.3×5800
Main Motor(kw) 4
Hydraulic Motor(kw) 1.1
Coolant Pump(kw) 0.06
Work piece Clamping Hydraulic Vise
Blade Tension Manual
Main Drive Worm wheel drive
Material feed Manual
Machine size 2850×1750×1800mm
Machine weight 2000kg
Working light YES
One piece of bi-metal saw blade YES
One set of tools with tool box YES
Operation manual YES
Roller rack YES
Option parts 1. Hydraulic blade tension : 450us
2. Inverter speed: 700us 3. Band saw blade: 43us/pcs
