Features

Cutting angle settings 0° - 45°.
Robust touch screen control panel.
Automatic work-piece feed.
Torsion-resistant dual-column construction.

Parameter

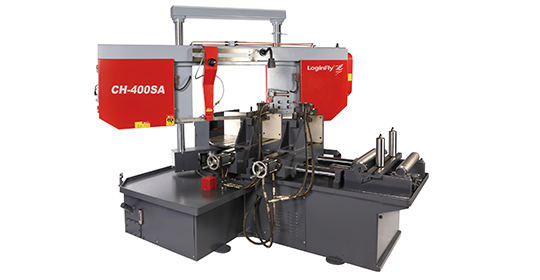

Model No. CH-400SA
Technical Data Cutting capacity(mm) 0°    400mm for Round shape, 400*600 for square shape
45°   400mm 400*400mm
Blade speed(m/min) 28/45/73
Blade size(mm) 41×1.3×5600
Main Motor(kw) 4
Hydraulic Motor(kw) 1.1
Coolant Pump(kw) 0.06
Work piece Clamping Hydraulic Vise
Blade Tension Manual
Main Drive Worm wheel drive
Material feed Manual
Machine size 2850×2550×1900mm
Machine weight 3000kg
Working light YES
One piece of bi-metal saw blade YES
One set of tools with tool box YES
Operation manual YES
Roller rack YES
Option parts 1. Hydraulic blade tension : 450us
2. Inverter speed: 700us 3. Band saw blade: 43us/pcs/td>
