Hydraulic saw frame feed via chrome-plated column guide.
Slightly inclined saw frame improves cutting performance and increases the service-life.
Dual hydraulic work-piece clamping.
Infinitely variable cutting speed.

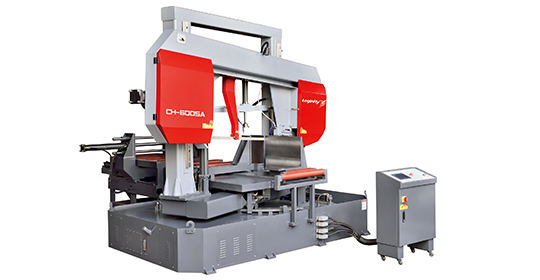

Model No. New CH-600SA
Max Diameter 0°: 600mm, 60°: 300mm
0°: 600×700mm, 60°: 300mm
Blade Speed 20~90m/min Inverter
Size 41×1.3×8950mm
Tension Hydraulic
Motor power Blade 7.5kw(6P)
Hydraulic 1.5kw
Coolant 0.09kw
Material feed 500mm × 99tims Auto feed
Angle Rotate Auto
Workpiece Clamp Hydraulic
Machine size(L×W×H) 4400×3100×2400mm
