Automatic angle positioning in 1° increments from 0° to 45°.
Hydraulic bundle vise for both vises included with standard equipment.
Precise and stable saw band guides ensure high angular accuracy.
Automatic band breakage control.

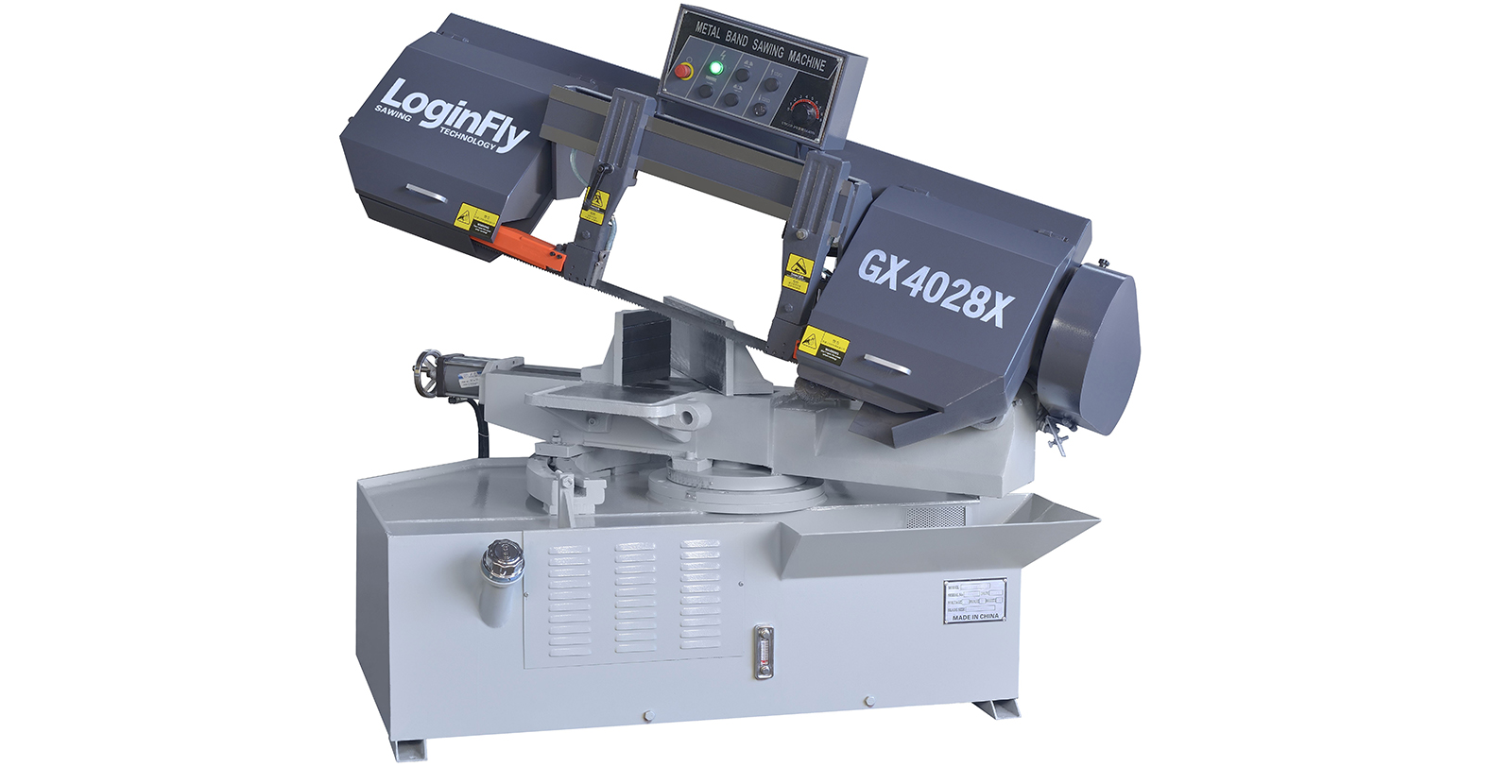

Model No. GX4028X
Technical Data Cutting capacity(mm) 0°    300mm for Round shape, 300*350 for square shape 45°    240mm 240*130mm
Blade speed(m/min) 22/35/50/75
Blade size(mm) 34×1.1×3700
Main Motor(kw) 2.2
Hydraulic Motor(kw) 0.55
Coolant Pump(kw) 0.06
Work piece Clamping Hydraulic Vise
Blade Tension Manual
Main Drive Worm wheel drive
Material feed Manual
Machine size 1950×1500×1400mm
Machine weight 720kg
Standard Equipment Blade cleaning brush YES
Working light YES
One piece of bi-metal saw blade YES
One set of tools with tool box YES
Operation manual YES
Roller rack YES
Saw frame height selector gauge YES
