Features

Fully automatic CNC sawing machine, suitable for mass production one after another.
Automatic Band saw machine Use PLC control system, you can set 5 groups of data cut in series.
Touch screen operation, man-machine interface replaces the traditional button control panel.
Manual and active dual-use selection.

Parameter

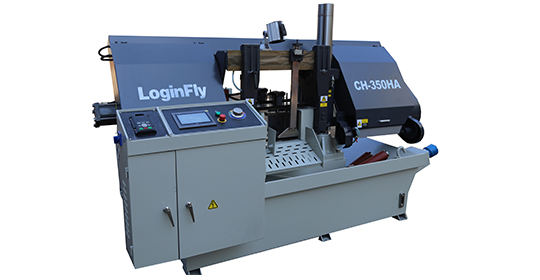

Model No. CH-350HA (Double Column)
Technical Data Cutting capacity(mm) 350mm for Round shape, 350X350 for square shape
Blade speed(m/min) 25/33/53/80
Blade size(mm) 34×1.1×4115
Main Motor(kw) 3
Hydraulic Motor(kw) 0.75
Coolant Pump(kw) 0.04
Work piece Clamping Hydraulic Vise
Blade Tension manual
Material feed Auto
Multiple feed 400mmx9 times auto feed
Machine size 2200×2100×1750
Machine weight 1600kg
Standard Equipment Blade cleaning brush Power blade cleaning brush
Working light YES
One piece of bi-metal saw blade YES
One set of tools with tool box YES
Operation manual YES
Bundle cutting device YES
Automatic feed roller YES
NC control YES
Saw frame height selector gauge Automatic work height control
Roller table YES
Automatic Work YES
Option parts 1. Hydraulic blade tension
2. Band saw blade 3. 1m Roller table
4. Auto Chip Conveyor 5. Inverter speed
