Features

Sawing speed increased by 50%
Saw blade life increased by 50%
Machining accuracy increased by 50%
Equipment service life increased by 50% Intelligent welding: robot welding, beyond the limit of manual to ensure stability, uniformity and consistency

Parameter

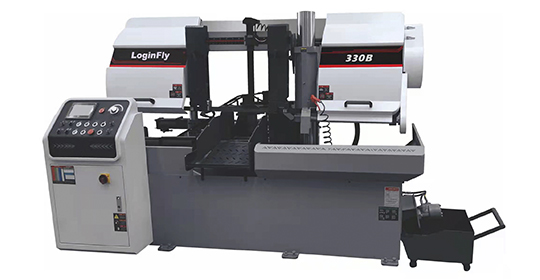

Model No. 330B CNC
Technical Data Cutting capacity(mm) 330mm for Round shape, 330WX330H for square shape
Blade speed(m/min) 10-80
Blade size(mm) 34*1.1*4115
Main Motor(kw) 4
Hydraulic Motor(kw) 0.75
Work piece Clamping Hydraulic Vise
Blade Tension Hydraulic
Chip conveyor Automatic
Main Drive Worm wheel drive

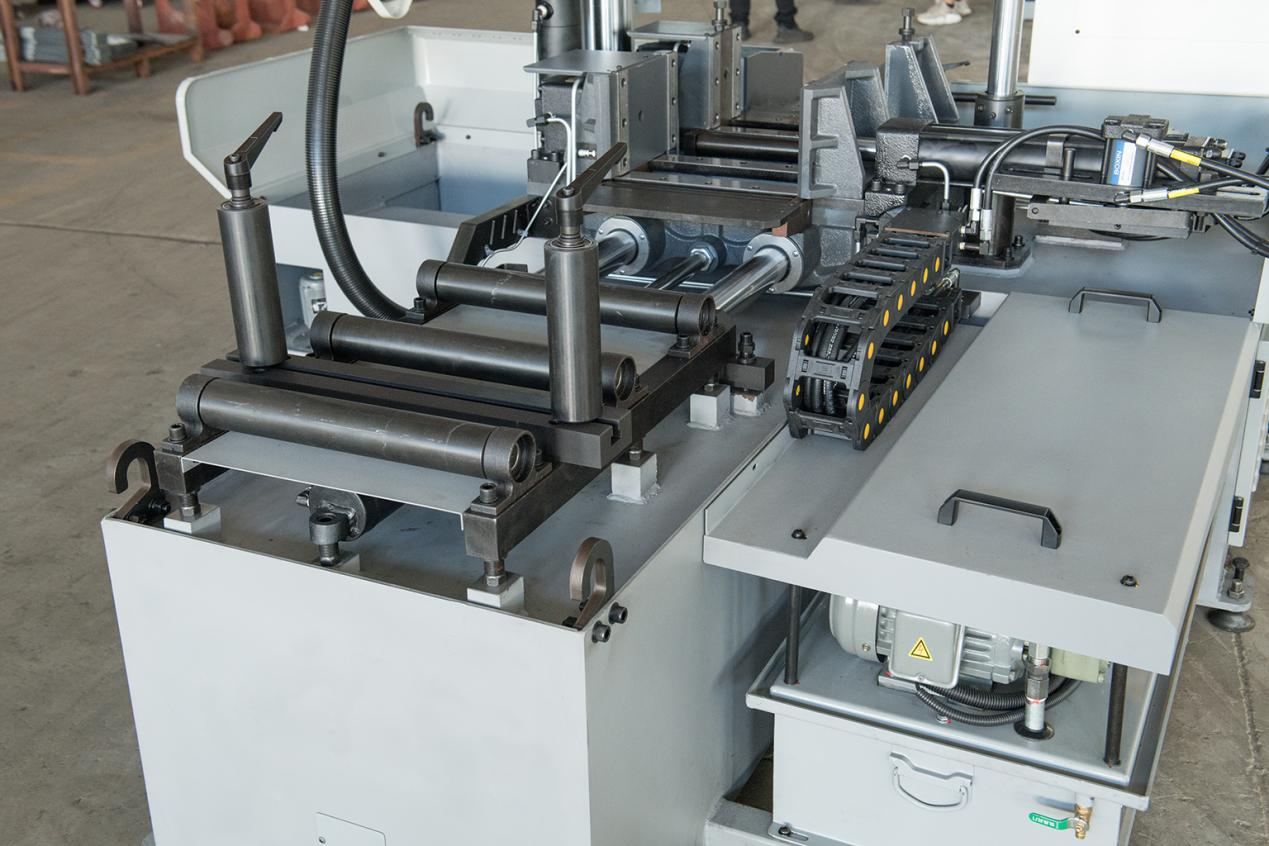

Material feed Automatic
Machine size 2500x2260x1650
Machine weight 2100kg
Standard Equipment Blade cleaning brush Power blade cleaning brush
Working light YES
One piece of bi-metal saw blade YES
One set of tools with tool box YES
Operation manual YES
Out feed with auxiliary plate table YES
Length stopper YES
Manual work height control YES
Machine package Steel and plywood

Video

330B CNC
