Features

Sawing speed increased by 50%
Saw blade life increased by 50%
Machining accuracy increased by 50%
Equipment service life increased by 50% Intelligent welding: robot welding, beyond the limit of manual to ensure stability, uniformity and consistency

Parameter

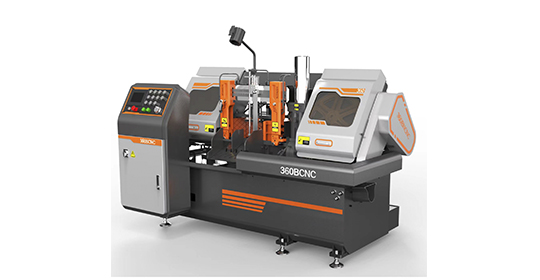

Model No. 360B CNC (Double Column)
Technical Data Cutting capacity(mm) 360mm for Round shape, 360X380 for square shape
Blade speed(m/min) 10-80
Blade size(mm) 34×1.1×4400
Main Motor(kw) 5.5
Hydraulic Motor(kw) 0.75
Work piece Clamping Hydraulic Vise
Blade Tension Hydraulic
Chip Conveyor Automatic
Main Drive Worm wheel drive
Multiple feed 500mmx9 times auto feed
Machine size 2350×2200×1650
Machine weight 2400kg
Standard Equipment Blade cleaning brush Power blade cleaning brush
Working light YES
One piece of bi-metal saw blade YES
One set of tools with tool box YES
Operation manual YES
Bundle cutting device YES
Automatic feed roller YES
NC control YES
Saw frame height selector gauge Automatic work height control
Roller table YES

Video

360B CNC
