Features

Sawing speed increased by 50%
saw blade life increased by 50%
machining accuracy increased by 50%
equipment service life increased by 50% Intelligent welding: robot welding, beyond the limit of manual to ensure stability, uniformity and consistency

Parameter

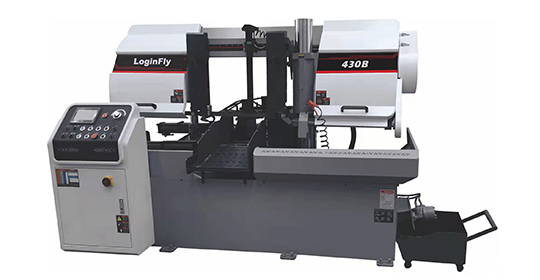

Model No. 430B CNC (Double Column)
Technical Data Cutting capacity(mm) 430mm for Round shape, 430X430 for square shape
Blade speed(m/min) 10-80
Blade size(mm) 1.3*41*5100
Main Motor(kw) 5.5
Hydraulic Motor(kw) 1.5
Work piece Clamping Hydraulic Vise
Blade Tension Hydraulic
Chip Conveyor Automatic
Main Drive Worm wheel drive
Multiple feed 400mmx9 times auto feed
Machine size 2800×2800×1750
Machine weight 3200kg
Standard Equipment Blade cleaning brush Power blade cleaning brush
Working light YES
One piece of bi-metal saw blade YES
One set of tools with tool box YES
Operation manual YES
Bundle cutting device YES
Automatic feed roller YES
NC control YES
Saw frame height selector gauge Automatic work height control
Roller table YES

Video

430B CNC

semi automatic metal cutting band saw machine
