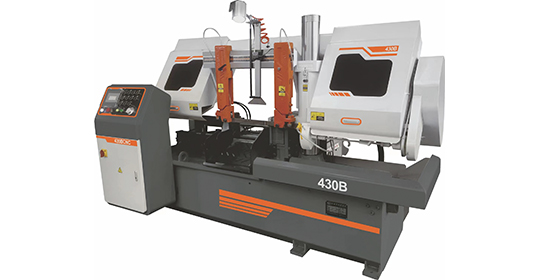

| Model No. | 430B | |
|---|---|---|
| Technical Data | Cutting capacity(mm) | 430mm for Round shape, 500WX430H for square shape |
| Blade speed(m/min) | 25/40/60/80 | |
| Blade size(mm) | 41×1.3×5100 | |
| Main Motor(kw) | 5.5 | |
| Hydraulic Motor(kw) | 1.5 | |
| Work piece Clamping | Hydraulic Vise | |
| Blade Tension | Manual | |
| Chip conveyor | Maunal | |
| Main Drive | Worm wheel drive | |
| Material feed | Automatic | |
| Machine size | 2800×2300×1750 | |
| Machine weight | 3000kg | |
| Standard Equipment | Blade cleaning brush | Power blade cleaning brush |
| Working light | YES | |
| One piece of bi-metal saw blade | YES | |
| One set of tools with tool box | YES | |
| Operation manual | YES | |
| Out feed with auxiliary plate table | YES | |
| Length stopper | YES | |
| Manual work height control | YES | |
| Machine package | Steel and plywood | |
