Features

Scissors metal Band Sawing machine's main drive system is composed of worm reducer, pulleys, drive wheels and other components, worm gear reducer and the drive wheel is connected directly, the transmission is relatively stable, there is no impact.
Band Saw Drive wheel speed through the belt to adjust, you can achieve a variety of cutting speed, so as to meet the cutting of different materials.
Band Saw clamping hydraulic vise clamping, mainly through the hydraulic cylinder driven jaw plate clamping the workpiece.
The jaw is a single jaw clamping, screw cylinder structure.

Parameter

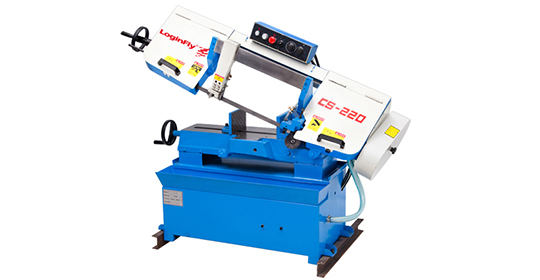

Model No. CS-220
Technical Data Cutting capacity(mm) 220mm for Round shape, 100WX400H for square shape
Blade speed(m/min) 29/52/78/103
Blade size(mm) 34×1.1×4115
Main Motor(kw) 3
Hydraulic Motor(kw) 0.55
Coolant Pump(kw) 0.06
Work piece Clamping Hydraulic Vise
Blade Tension manual
Main Drive Worm wheel drive
Material feed Manual
Machine weight 700kgs
Standard Equipment Blade cleaning brush Power blade cleaning brush
Working light YES
One piece of bi-metal saw blade YES
One set of tools with tool box YES
Operation manual YES
Optional Equipment 20~100 M/MIN  Inverter
Hydraulic blade tension
Auto chip conveyor
Band saw blade
Machine package Steel and plywood
