Scissors metal Band Sawing machine's main drive system is composed of worm reducer, pulleys, drive wheels and other components, worm gear reducer and the drive wheel is connected directly, the transmission is relatively stable, there is no impact.
Band Saw Drive wheel speed through the belt to adjust, you can achieve a variety of cutting speed, so as to meet the cutting of different materials.
Band Saw clamping hydraulic vise clamping, mainly through the hydraulic cylinder driven jaw plate clamping the workpiece.
The jaw is a single jaw clamping, screw cylinder structure.

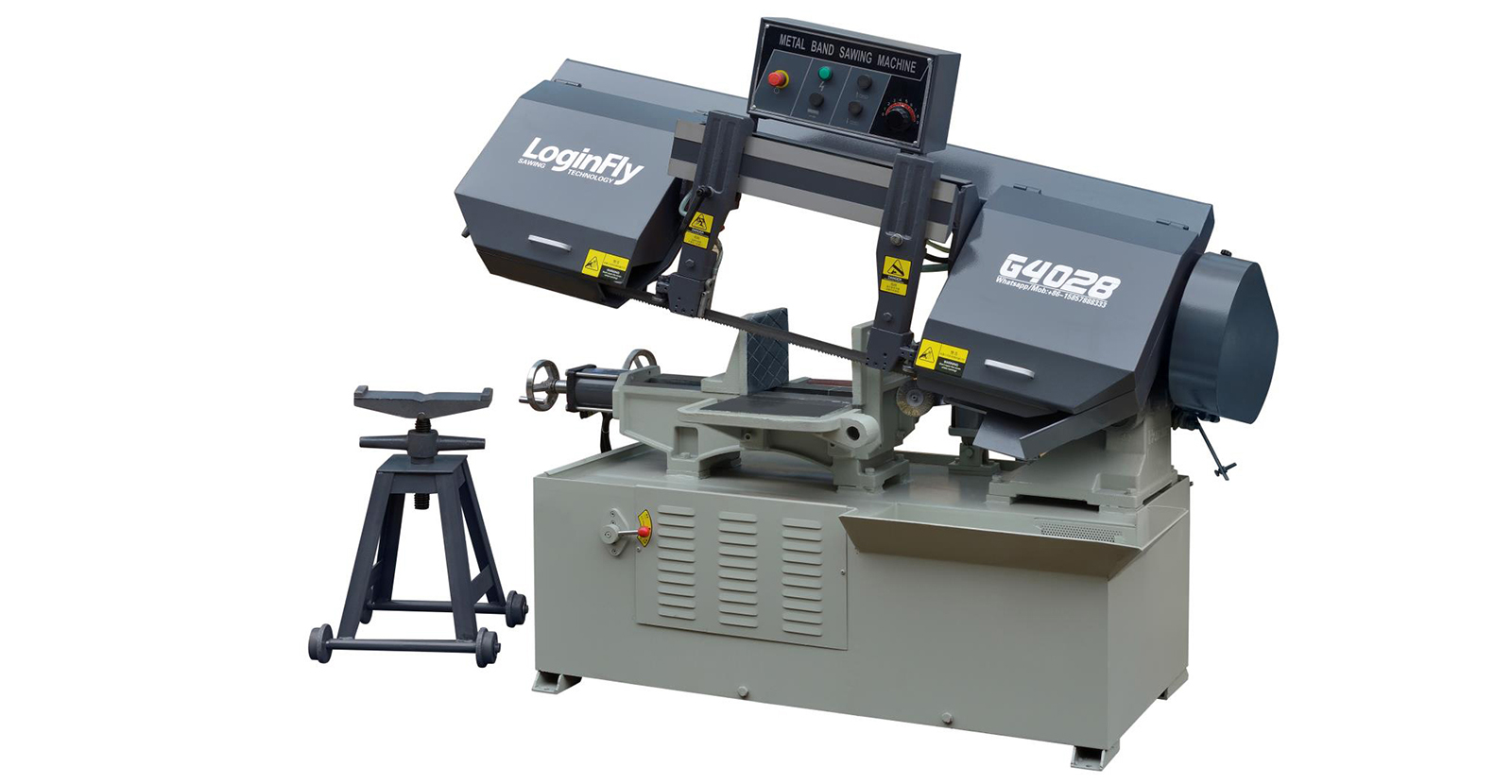

Model No. G4028
Technical Data Cutting capacity(mm) 80mm for Round shape, 300X220 for square shape
Blade speed(m/min) 22/35/50/75
Blade size(mm) 27×0.9×3505
Main Motor(kw) 2.2
Hydraulic Motor(kw) 0.37
Work piece Clamping Hydraulic Vise
Blade Tension manual
Main Drive Worm wheel drive
Material feed Manual
Machine weight 720kgs
Machine Size 1800*1200*1150mm
Standard Equipment Blade cleaning brush YES
Working light YES
One piece of bi-metal saw blade YES
One set of tools with tool box YES
Operation manual YES
Roller rack YES
Out feed with auxiliary plate table YES
