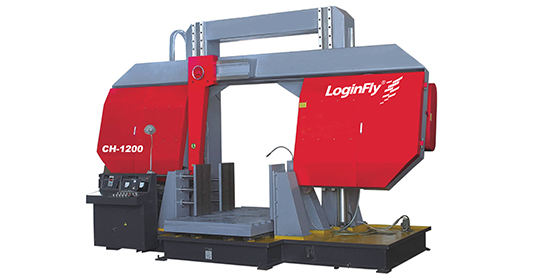

| Model No. | New | CH-1200 |
|---|---|---|
| Max.cutting capacity | Round | 1200mm |
| Quadrate | 1200×1200mm | |
| Saw blade | Speed | 15 to 60 m/min (INVERTER) |
| Size | 67×1.6×11180 | |
| Guides | Carbide and bearing blade guides | |
| Cleaning | Power wire brush & flood coolant | |
| Tension | Hydraulic | |
| Motor output | Blade | 15kw |
| Hydraulic | 3.75kw | |
| Coolant | 0.09kw | |
| Work feeding | Hydraulic shuttle table feeding | |
| Work Vice | Hydraulic | |
| Machine weight | 12000kg | |
| Machine size(L×W×H) | 5050×2250×3380 | |
