| Technical Data |
Cutting capacity(mm) |
280mm for Round shape, 380X280 for square shape |
| Blade speed(m/min) |
29/42/53/74 |
| Blade size(mm) |
0.9×27×3635 |
| Main Motor(kw) |
2.2 |
| Hydraulic Motor(kw) |
0.55 |
| Work piece Clamping |
Hydraulic Vise |
| Blade Tension |
manual |
| Main Drive |
Worm wheel drive |
| Material feed |
Manual |
| Machine size |
1970×1320×1650 |
| Machine weight |
800kg |

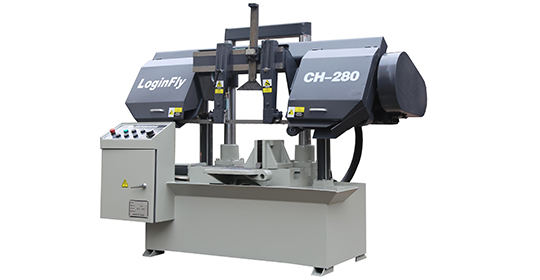

| Machine Photo |
|
| Standard Equipment |
Blade cleaning brush |
YES |
| Working light |
YES |
| One piece of bi-metal saw blade |
YES |
| One set of tools with tool box |
YES |
| Operation manual |
YES |
| Roller rack |
YES |
| Out feed with auxiliary plate table |
YES |
| Length stopper |
YES |
| Manual work height control |
YES |
| Machine package |
Steel and plywood |
