Parameter

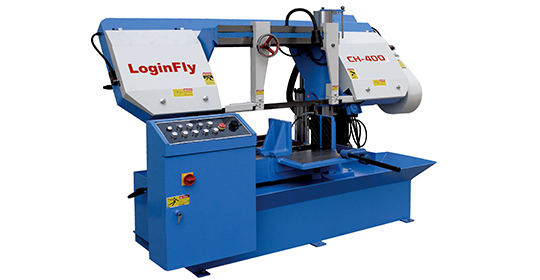

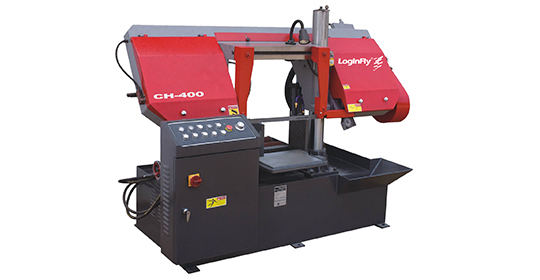

Model No. CH-400
Technical Data Cutting capacity(mm) 400mm for Round shape, 400WX400H for square shape
Blade speed(m/min) 25/40/60
Blade size(mm) 1.3×41
Main Motor(kw) 4
Hydraulic Motor(kw) 1.5
Work piece Clamping Hydraulic Vise
Blade Tension manual
Main Drive Worm wheel drive
Material feed Manual
Machine size 3000×1400×2100
Machine weight 1800kg
Standard Equipment Blade cleaning brush Power blade cleaning brush
Working light YES
One piece of bi-metal saw blade YES
One set of tools with tool box YES
Operation manual YES
Manual work height control YES
Machine package Steel and plywood
Option parts 1.Hydraulic blade tension
2. 1.5m Electric Motor Roller table 3. Band saw blade
4. Inverter speed 5. Chip conveyor
