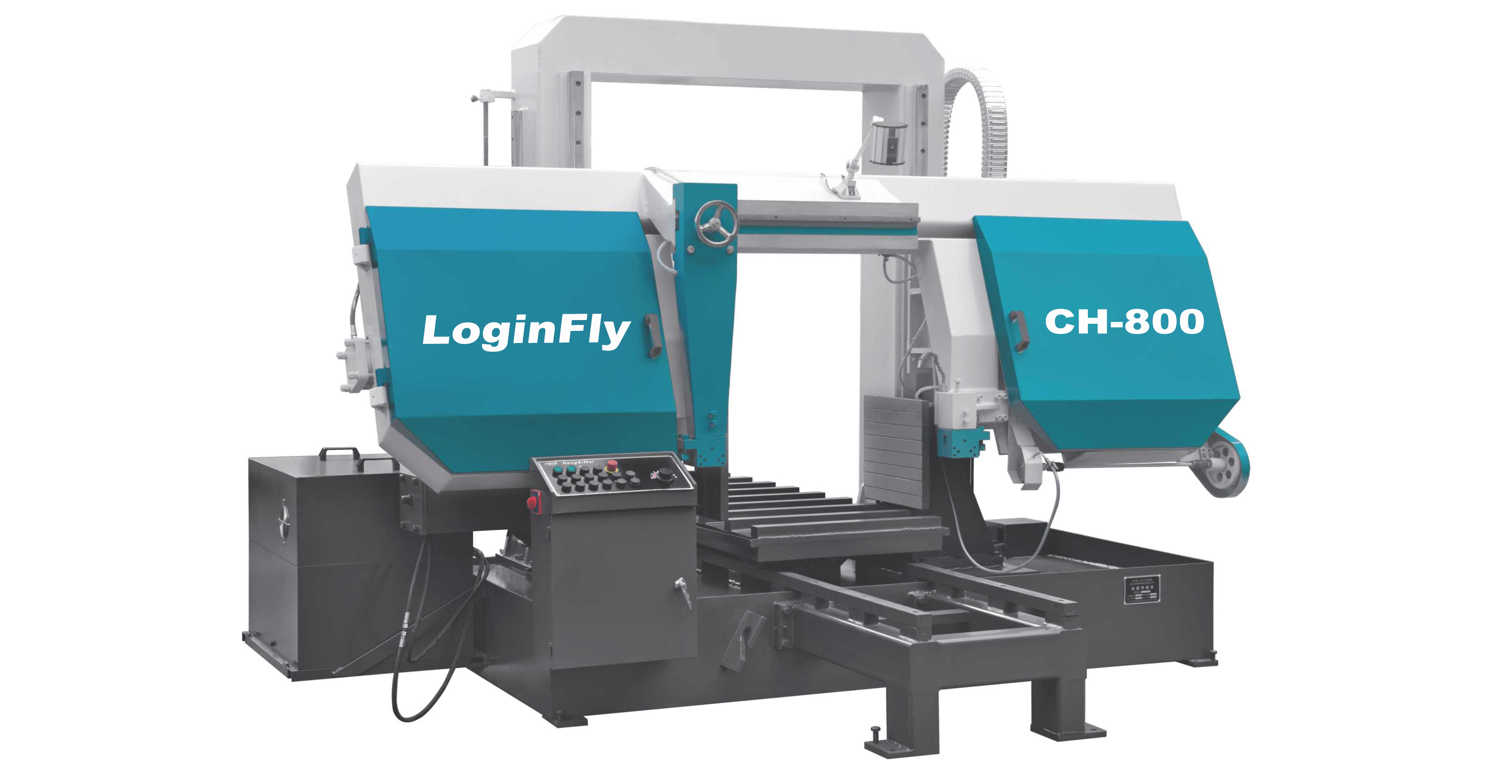

| Model No. | New | CH-800 |
|---|---|---|
| Max Diameter | ● | 800mm |
| ■ | 800×800mm | |
| Blade | Speed | 18~60 m/min inverter |
| Size | 67×1.6 | |
| Tension | Hydraulic | |
| Motor power | Blade | 7.5kw(4P) |
| Hydraulic | 2.25kw | |
| Coolant | 0.09kw | |
| Auto feeding length | 1500mm | |
| Workpiece Clamp | Hydraulic | |
| Machine weight | 8450kg | |
| Machine size(L×W×H) | 4130×2200×2700 | |
