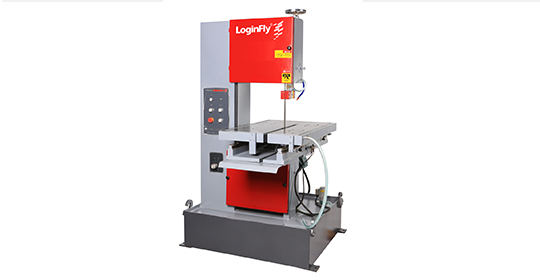

| Model No. | New | CV-5125 |
|---|---|---|
| Original | ||
| Max Cutting size | Height | 250mm |
| Throat | 300mm | |
| Length | 500mm | |
| Saw blade | Speed | 20/45/90 |
| Size | 0.9*27*3150 | |
| Tension | Manual | |
| Guides | Carbide and bearing blade guides | |
| Cleaning | Wire brush & flood coolant | |
| Inner Table size | 5850*1260mm | |
| Motor output | Blade | 2.2kw |
| Hydraulic | ||
| Coolant | 0.075kw | |
| Feed | ||
| Vice | T-slotted table option with mechanical top clamp | |
| Work feeding | Lift and feed rollers | |
| Machine Weight | 1000kg | |
| Machine size(L×W×H) | 1200×1000×1800mm | |
