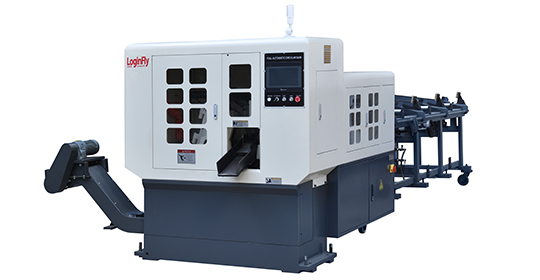

LJX-50

Applications: Use in auto, forging,military, mining machinery,bearing ,high-speed rail, steel processing industry etc.

Features

high-rigid body structure
Advanced clamping device
Long life blade
Servo motor and ball screw high-precision feeding system

Parameter

Model LJX-50
Cut-off capacity Round bar/tube Φ10-50mm
Square bar/tube 10-40mm
Saw head spindle TCT carbide tipped saw blade type Φ285*T2.0mm
Saw blade rotation speed 22-200rpm
MotorSpindle driving motor5.5kw/4p
Hydraulic device Work driving pressure 70kg/C㎡(7MPa)
Tank capacity 70L
Machine dimension-weight Dimension(L*W*H) 6740*1655*1500mm
Weight(main body+shelf) 2210kgs

Video

LJX-50

Applications: Use in auto, forging,military, mining machinery,bearing ,high-speed rail, steel processing industry etc.
