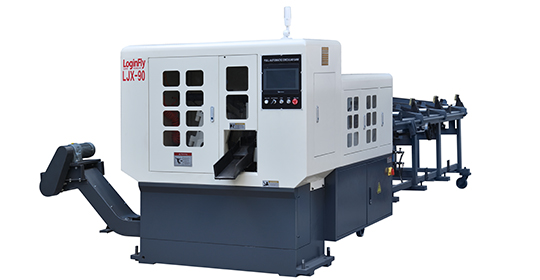

LJX-90

Applications: Use in auto, forging,military, mining machinery,bearing ,high-speed rail, steel processing industry etc.

Features

high-rigid body structure
Advanced clamping device
Long life blade
Servo motor and ball screw high-precision feeding system

Parameter

Model LJX-90
Cut-off capacity Round bar/tube Φ20-90mm
Square bar/tube 20-80mm
Saw head spindle TCT carbide tipped saw blade type Φ315*T2.25mm
Saw blade rotation speed 22-180rpm
MotorSpindle driving motor7.5kw/4p
Hydraulic device Work driving pressure 70kg/C㎡(7MPa)
Tank capacity 90L
Machine dimension-weight Dimension(L*W*H) 7200*1850*1735mm
Weight(main body+shelf) 2840kgs

Video

LJX-90

Applications: Use in auto, forging,military, mining machinery,bearing ,high-speed rail, steel processing industry etc.
