Applications: Use in auto, forging,military, mining machinery,bearing ,high-speed rail, steel processing industry etc.

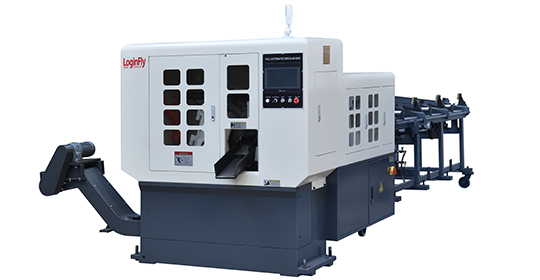

| Model | LJX-70 | |
|---|---|---|
| Cut-off capacity | Round bar/tube | Φ10-70mm |
| Square bar/tube | 10-60mm | |
| Saw head spindle | TCT carbide tipped saw blade type | Φ285*T2.0mm |
| Saw blade rotation speed | 22-220rpm | |
| MotorSpindle driving motor7.5kw/4p | ||
| Hydraulic device | Work driving pressure | 70kg/C㎡(7MPa) |
| Tank capacity | 90L | |
| Machine dimension-weight | Dimension(L*W*H) | 7200*1850*1735mm |
| Weight(main body+shelf) | 2630kgs | |
Applications: Use in auto, forging,military, mining machinery,bearing ,high-speed rail, steel processing industry etc.
