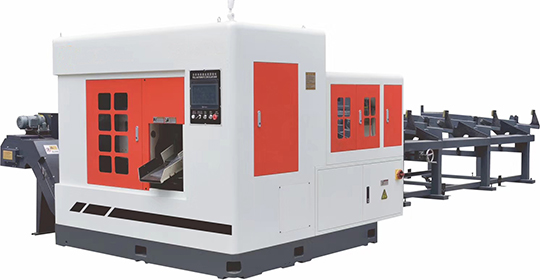

| Model | LJX-260B | |
|---|---|---|
| Cut-off capacity | Round bar/tube | Φ120-260mm |
| Square bar/tube | 120-195mm | |
| Saw head spindle | TCT carbide tipped saw blade type | Φ860*T4.2mm |
| Saw blade rotation speed | 20-75rpm | |
| MotorSpindle driving motor37kw/6p | ||
| The short tail length | A type | 20mm+ cutting length |
| B type | 70mm+ cutting length | |
| Hydraulic device | Work driving pressure | 100kg/C㎡(7MPa) |
| Tank capacity | 220L | |
| Machine dimension-weight | Dimension(L*W*H) | 7570*2700*2350mm |
| Weight(main body+shelf) | 20000kgs | |
