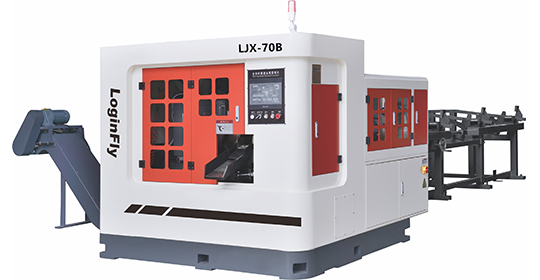

LJX-70B

Applications: Use in auto, forging,military, mining machinery,bearing ,high-speed rail, steel processing industry etc.

Features

Faster and shorter tail
High-rigid body structure
Advanced clamping device
Servo motor and ball screw high-precision feeding system

Parameter

Model LJX-70B
Cut-off capacity Round bar/tube Φ10-70mm
Square bar/tube 10-55mm
Saw head spindle TCT carbide tipped saw blade type Φ285*T2.0mm
Saw blade rotation speed 22-200rpm
MotorSpindle driving motor7.5kw/4p
The short tail length A type 20mm+ cutting length
B type 50mm+ cutting length
Hydraulic device Work driving pressure 70kg/C㎡(7MPa)
Tank capacity 90L
Machine dimension-weight Dimension(L*W*H) 6870*2700*1750mm
Weight(main body+shelf) 4200kgs
