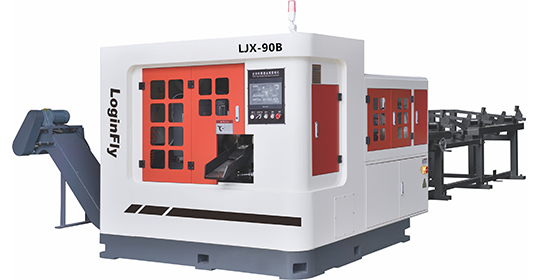

| Model | LJX-90B | |
|---|---|---|
| Cut-off capacity | Round bar/tube | Φ20-90mm |
| Square bar/tube | 20-70mm | |
| Saw head spindle | TCT carbide tipped saw blade type | Φ315*T2.3mm |
| Saw blade rotation speed | 20-180rpm | |
| MotorSpindle driving motor7.5kw/6p | ||
| The short tail length | A type | 20mm+ cutting length |
| B type | 70mm+ cutting length | |
| Hydraulic device | Work driving pressure | 70kg/C㎡(7MPa) |
| Tank capacity | 90L | |
| Machine dimension-weight | Dimension(L*W*H) | 7070*2700*1750mm |
| Weight(main body+shelf) | 4500kgs | |
