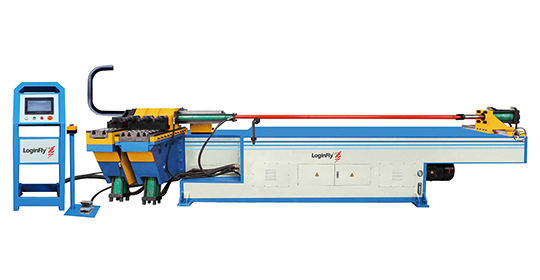

Auto single head bending machine NCB SERIES

The tubing is clamped on the bending wheel die. With the bending die together, the pipe is squeezed on the wheel die when the pipe is pulled over the pressure block, which belongs to the forming die bending process. With the development of numerical control bender and CNC machine tool industry, the use of advanced CNC pipe bending machine can greatly improve the production efficiency and guarantee the quality of the product. Because the process can be conveniently adjusted, the NC can complete the straightening, straightening, feeding and bending processes accurately and stably. The bending accuracy of the tube parts is guaranteed. However, the quality of the curved copper tube is more sensitive to the process parameters, it is necessary to have sufficient prep-reparation and trial production, especially the curved thin-walled copper tubes. If the selection of the process is not appropriate, it is easy to wrinkle and cause the work piece to be scrapped. How to obtain these qualities and accurately, and fully guarantee the quality of elbow products. It is the pilot of the research on the technology of the NC pipe bending machine.

Parameter

Model No. 38NCB 42NCB 50NCB 63NCB 76NCB 89NCB 100NCB 114NCB
Max bending capacity(MM) Φ38*2 Φ42*3 Φ50*2 Φ63*4 Φ76*5 Φ89*10 Φ100*8 Φ114*12
Bending radius region(MM) 20-200 20-250 20-250 25-300 30-350 40-400 40-400 40-450
Bending angle region(Degree) 0-190 0-190 0-190 0-190 0-190 0-190 0-190 0-190
Effective length over mandrel(MM) 3000 3200 3200 3500 3800 4000 4000 4200
Oil pressure system motor(KW) 4 5.5 5.5 5.5 7.5 11 11 15
Max pressure(Kg/Cm) 160 160 160 160 160 160 160 160
Machine dimension(MM) 3200*700*1300 3500*800*1300 3500*800*1300 4500*1200*1350 4800*1200*1350 5300*1350*1200 5000*1350*1200 5200*1350*1250
Machine weight(KG) 1500 1800 2000 3000 3500 4500 4800 5500
