Applications:
used in shipbuilding, automobile,motorcycle,bicycle,baby stroller,petrochemical,steel furniture of various of various types of processing industry, is an ideal equipment for various pipe profile cutting irrigation area, the shrinking and expanding riveting processing.

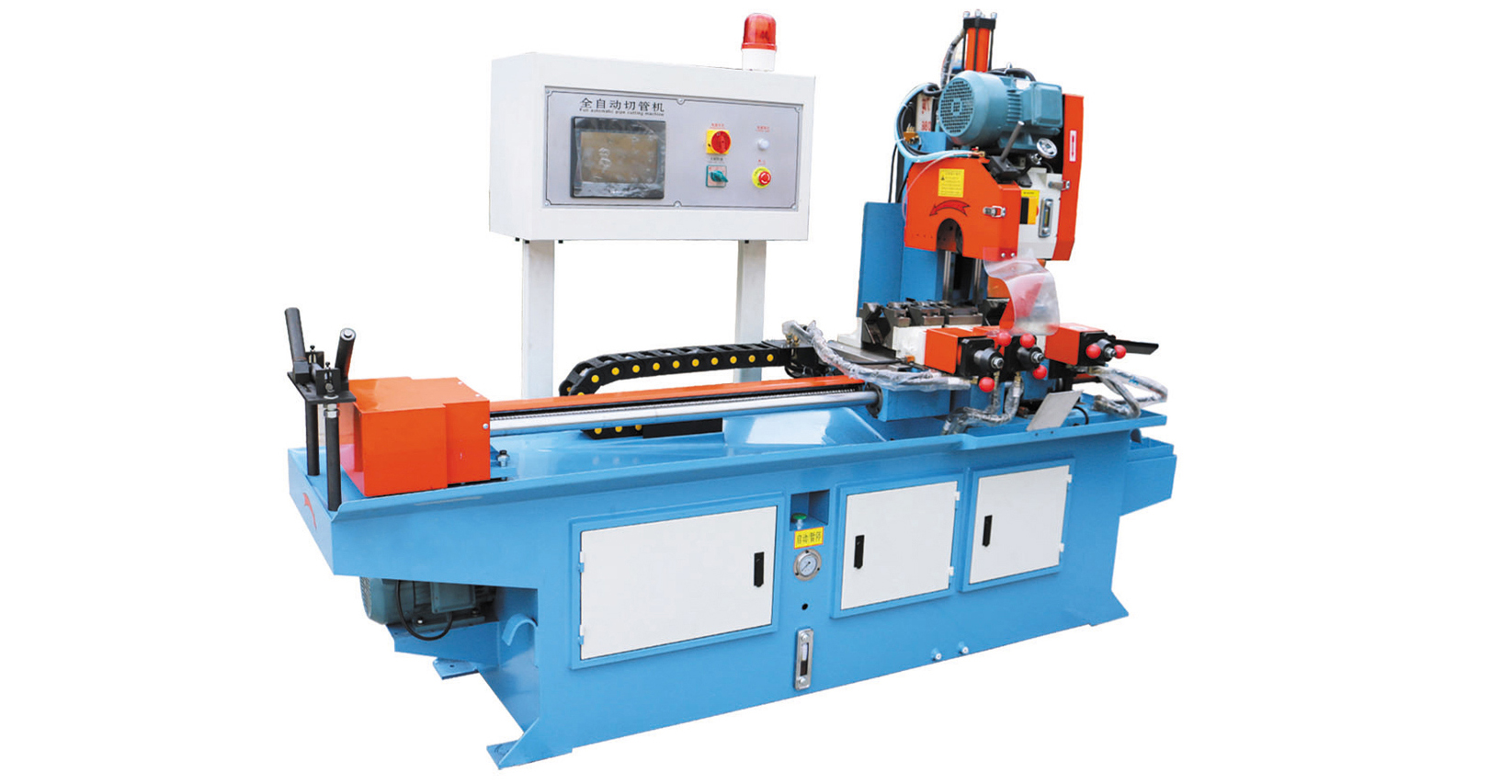

| AUTOMATIC PIPE CUTTING MACHINE | ||
| Model | 425CNC-G-L (Top clamp) | 425CNC-Z-L (left clamp) |
| Motor: | 2.8/3.6kw | 2.8/3.6kw |
| Clamping max open:(mm) | 160 | 160 |
| Saw blade:(mm) | φ300-φ450 | φ300-φ425 |
| Dimension:(mm) | 3300*1200*1900 | 2000*1200*1900 |
| Weight:(kg) | 1500 | 1700 |
| Cutting ability: | ||
| Round pipe | φ120mm | φ100mm |
| Square pipe | 100*100mm | 110*110mm |
| Round bar | φ50mm | φ40mm |
| Square bar | 50*50mm | 30*30mm |
| Cutting thickness | ≤ 1mm | 2mm-10mm |
| Cutting size | thickness≤1mm Φ≤ 120 mm | 2mm-10mm |
| Materail feed | Servo motor (ball screw) | |
| length measure | Servo motor (ball screw) | |
| Feeding length 1m (standrad) | ||
| Feeding length 1.5m (Option) | ||
| Feeding length 2m (Option) | ||
