Optional nylon fixtures, to avoid scratching the tube, good toughness, but also the choice of V-type universal fixture, holding firm.
Metal pipe cutting machine servo motor with high-precision ball screw, high precision, size standards.
Spindle stepless speed regulation, speed can be adjusted.
Cut the length of the workpiece data input automatic control function, permanent memory, calculator function reflects the number of processing at any time.
Support rack freely adjust the height, convenient and quick.
| SEMI AUTOMATIC SERIES | |

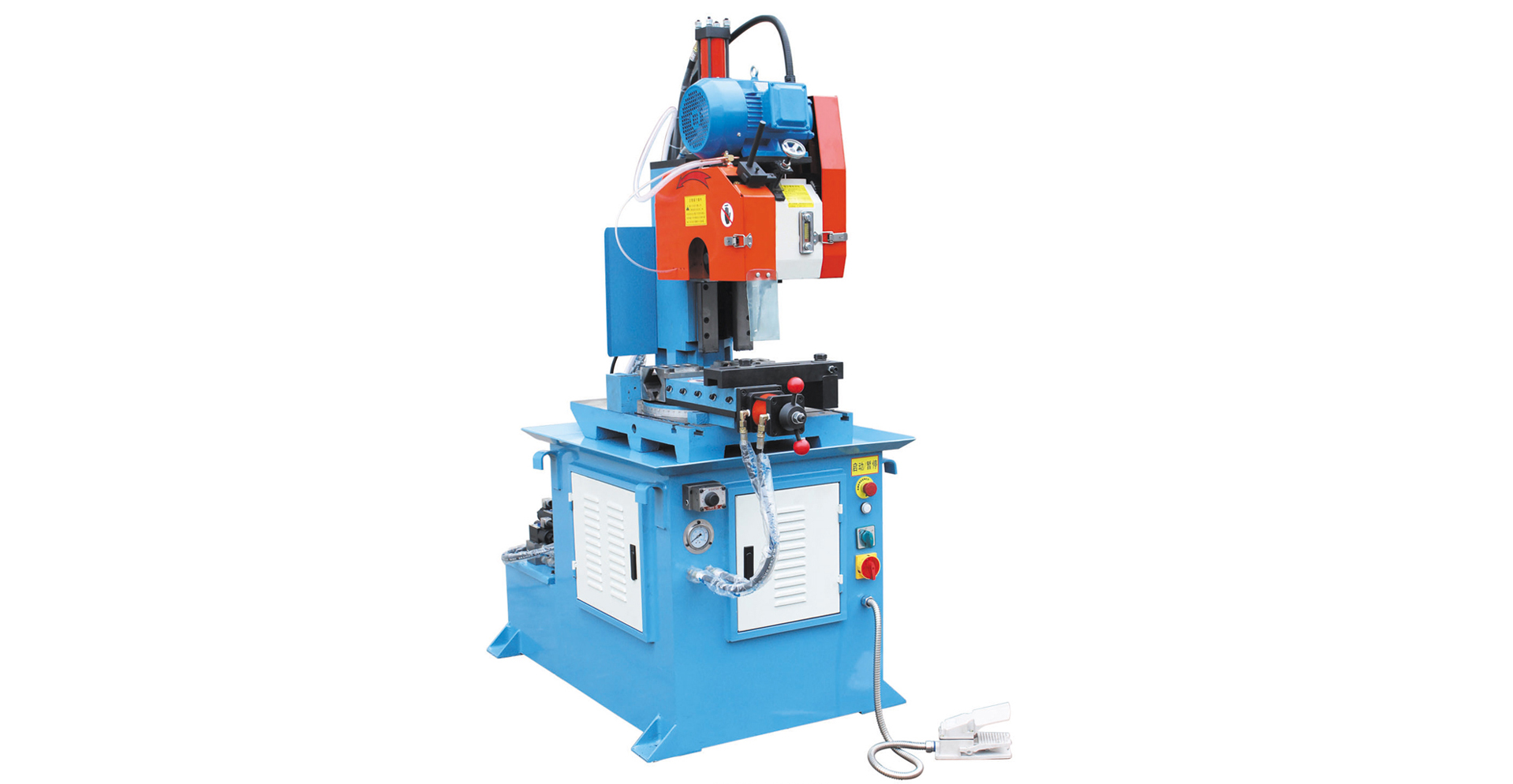

| Model | YT425 (HYDRAULIC) |
| Motor: | 2.8/3.6kw |
| Clamping max open:(mm) | 200 |
| Saw blade:(mm) | φ315-φ450 |
| Dimension:(mm) | 1300*1400*1900 |
| Weight:(kg) | 950 |
| Cutting ability: | |
| Round pipe | φ130mm |
| Square pipe | □120*120mm |
| Round bar | ●50mm |
| Square bar | ■45*45mm |
