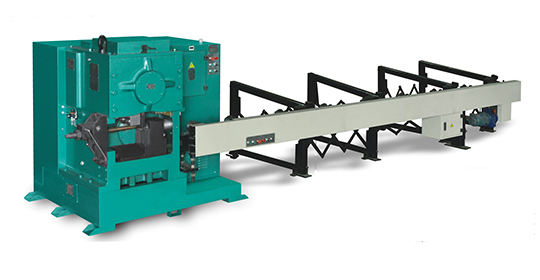

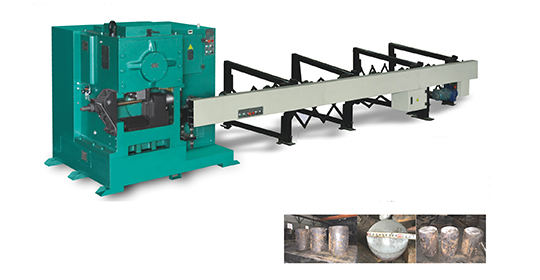

| Model | LYQ-80 |
|---|---|
| Cut-off capacity(mm) | φ80 |
| Cutting capacity(s/min) | 25 |
| Keep-off range(mm) | 35-150 |
| Screw feeding accuracy | ≤2 |
| The section roundness | 0.95 |
| Shear weight error(g) | ±5 |
| Motor(kw) | 18.5 |
| Weight(kg) | 5500 |
| Cutting range | |
| Material | Cut-off capacity(mm) Round Bar |
| 20# Q235 | φ85 |
| 20MN 20Cr | φ85 |
| 45# 1Cr13 40MN | φ80 |
| 55# 40Cr 20CrMnTi 2Cr13 | φ65 |
| 35CrMo 3Cr13 | φ60 |
| 42CrMo GCr15 60CrMn | φ55 |
